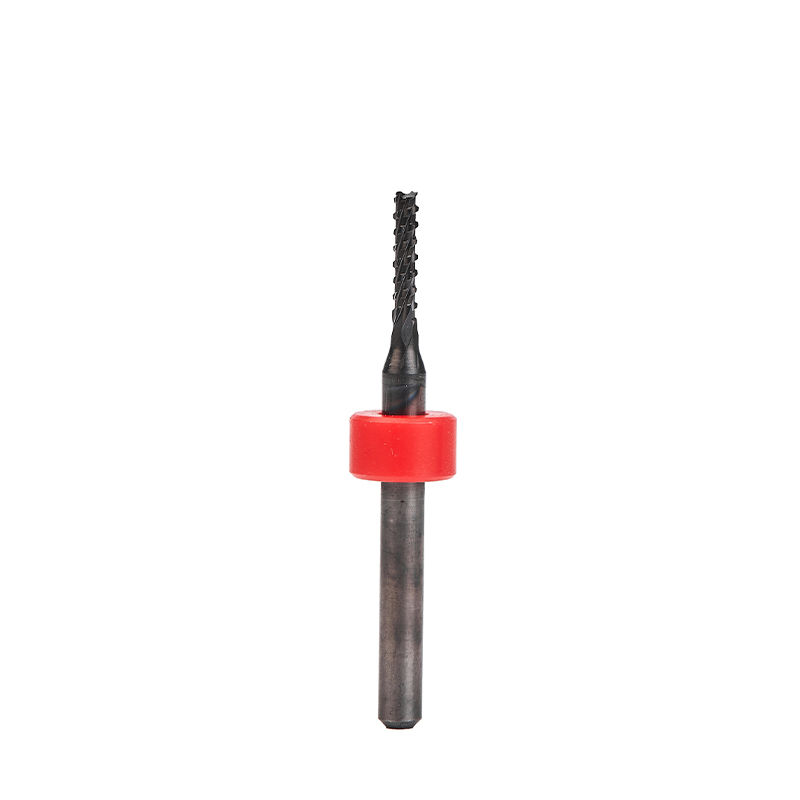

PCB Diamond-Coated Milling Cutters

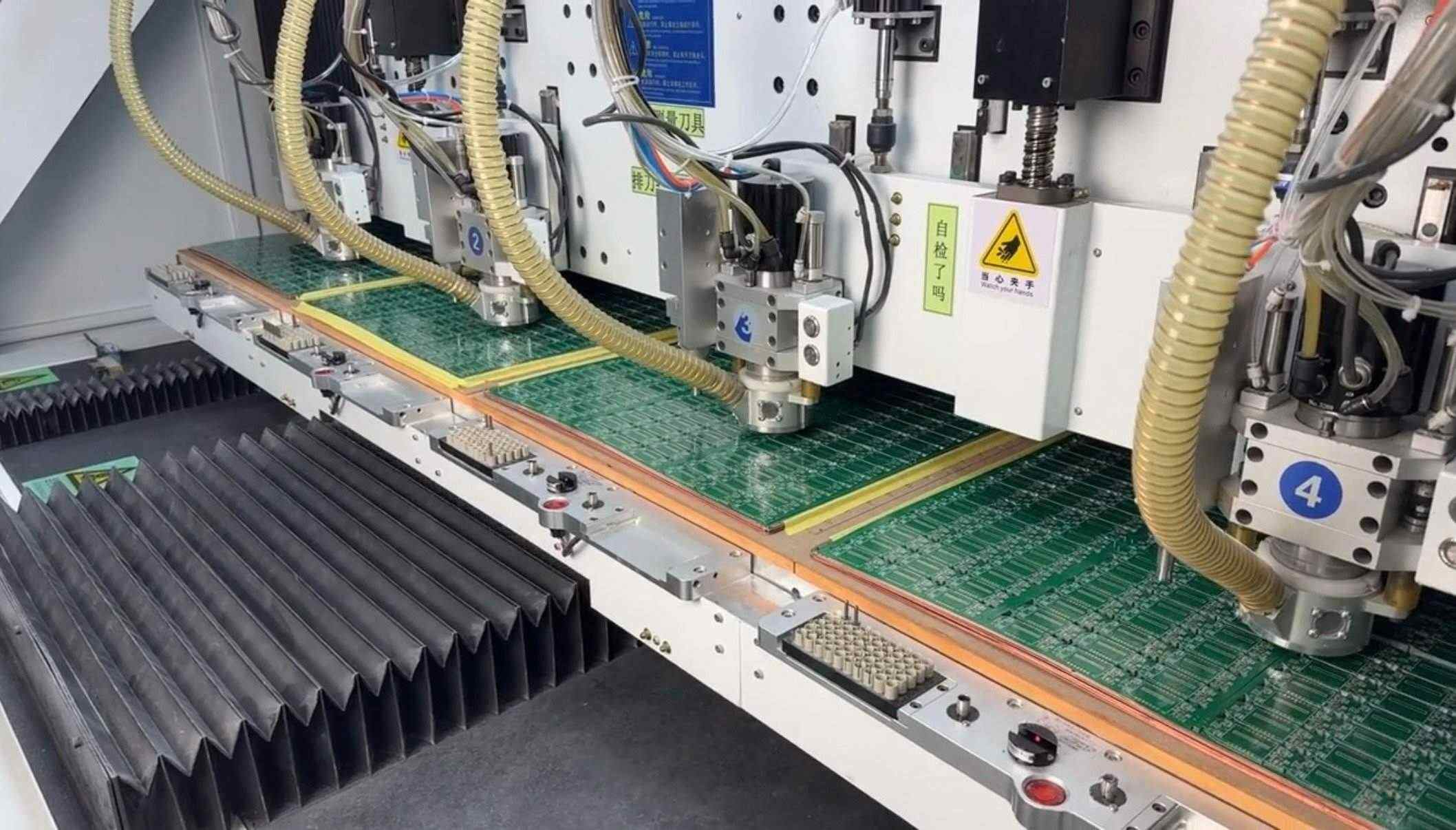

PCB diamond-coated milling cutters, also known as PCB routing cutters, printed circuit board milling cutters, or engraving cutters, are primarily used for contour cutting, slotting, depth-controlled milling, V-grooving, half-hole machining, and gold finger chamfering of PCBs; they are the most commonly used carbide tools in post-PCB manufacturing processes.

Doubled Tool Life
Exceptional Precision
Outstanding Efficiency
Controllable Costs
Broad Application Compatibility

Chat Now Message Email

Description

Doubled Tool Life: Conventional FR-4 boards achieve 3–5× the tool life of standard tungsten carbide routers; for high-hardness substrates (e.g., M9, high-Tg materials), tool life increases by 5–20×—significantly reducing tool-change frequency and equipment downtime while enhancing production continuity.

Exceptional Precision: Routing dimensional tolerance ≤ ±25 μm; groove width tolerance ≤ ±0.003 mm; routed surfaces are burr-free, delamination-free, and chip-free—ideal for precision routing and grooving of HDI and high-layer-count PCBs.

Outstanding Efficiency: Compatible with high-speed spindles (80,000–180,000 RPM); feed rates increase by 20–30%; reduced risk of chipping or breakage; yield improvement of 5–15%; substantially increased output per unit time.

Controllable Costs: Per-unit processing cost reduced by 30–50%; lower router procurement, storage, and machine setup costs; equipment utilization improved by over 20%—achieving both cost reduction and efficiency gains.

Broad Application Compatibility: Perfectly suited for routing, grooving, and profiling of advanced PCBs—including high-layer-count, high-frequency/high-speed, HDI, thick-copper, and ceramic substrates.
