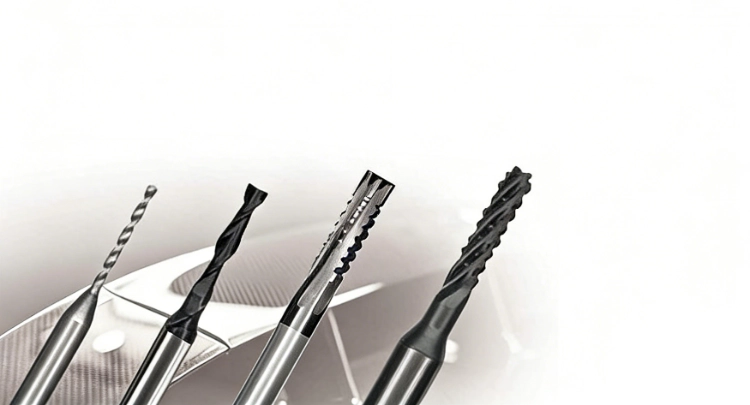

How Tool Geometry Affects High Precision Milling Cutter Performance

High precision milling cutter performance depends on more than coating or material. Tool geometry controls how the cutter enters the workpiece, how chips leave the cut, and how the surface looks afterward. The same coating can perform differently when the tool shape changes.

For buyers, geometry is a practical production choice. It affects whether the machine runs smoothly, whether the operator needs extra passes, and whether the part leaves the machine ready for the next process.

TSHZ offers diamond-coated cutter options for precision machining needs. For buyers, the practical route is to choose the cutter shape according to the surface, material, and machining path rather than treating all milling cutters as interchangeable.

What Geometry Terms Matter Most in Milling Cutters?

Tool geometry describes the shape and cutting behavior of the tool. It affects contact area, force direction, chip flow, and surface finish.

Cutter Tip Shape

The tip shape decides how the cutter meets the material. A flat, ball, or round nose shape produces a different cutting action and a different surface pattern.

A small shape change can change the whole feel of machining. The cutter may push material differently, leave a different mark, or require a different tool path to reach the same surface target.

Edge Contact Behavior

A cutter with a wider contact area may feel more stable in some operations, while a smaller contact area may help in more detailed shaping. The buyer should connect this behavior to the machining job.

The operator’s experience matters here. A tool that chatters, rubs, or leaves uneven marks will be blamed quickly even if the purchase spec looked correct. Buyers should ask what the machine operator struggles with most: tool marks, edge wear, heat, chip packing, or unstable dimensions.

In high-precision CNC routing and finishing, geometry goes beyond profile contours. Essential baseline specs include a total radial runout (TIR) held under ≤0.003 mm to prevent uneven flute loading, paired with application-tailored helix angles (e.g., 30° for balanced chip ejection vs. 45° for low cutting resistance in aluminum and graphite). Controlling micro-geometry—such as edge honing and primary relief angles—directly suppresses tool deflection and eliminates micro-chatter marks across tight-tolerance surfaces.

Cutting Path Impact

The planned tool path changes which geometry is practical. A tool that works in flat-bottom milling may not give the same result on curved or contoured surfaces.

This is why the buyer should share the machining goal instead of sending only the cutter diameter. Pocket bottoms, side walls, 3D contours, and blended edges all call for different contact behavior.

How Does Shape Affect Surface Finish and Chip Control?

Shape affects how material is removed and how heat moves away from the cut. That directly changes both surface finish and tool wear.

Smooth Finishing

For controlled surface work, the tool should reduce harsh cutting marks and maintain a stable edge. A mismatched shape can create visible marks even when the coating is suitable.

A finished surface is not only a technical result. It affects how the next process feels, whether the part needs extra polishing, and whether the customer trusts the component at first inspection. Better geometry selection can reduce rework that is expensive but easy to overlook during quotation.

Stable Chip Evacuation

Chip evacuation matters because trapped chips can rub the workpiece and damage the edge. Geometry should support clean material removal, especially in repeated machining.

If chips stay in the cutting area, the operator may lower speed or stop more often to protect the part. That reduces the value of a precision cutter even when the tool material is suitable.

Heat Management

Heat builds when chips do not clear well or when the tool rubs instead of cuts. Geometry, feed, speed, and coating should work together to reduce that risk.

Heat problems often appear as shorter tool life, poorer surface finish, or unstable dimensions. A buyer should not expect coating alone to solve this. The cutter form, tool path, and machining setup all need to support clean cutting instead of forcing the tool to rub.

Which Cutter Forms Fit Which Materials?

Different cutter forms fit different surfaces and machining goals. The buyer should select the tool by cut type first.

Flat-Bottom Use Cases

Flat Bottom Cylindrical End Mill is relevant when the job needs flat features, clean bottoms, and controlled edge contact. It should be matched to the required surface and work material.

Ball Nose Use Cases

Kugelfräser is useful when the part has curved or contoured surfaces. The shape supports smoother transitions in 3D surface machining. Buyers should still match radius, feed, and stepover to the surface target because a ball nose cutter can also leave marks if the tool path is too rough.

Round Nose Use Cases

Rundkopf-Schaftfräser can be used where the cutter shape needs a rounded profile for smoother contact or specific tool path behavior.

Was sollten Käufer vor der Bestellung überprüfen?

The final decision should connect cutter shape to machine condition and production goal. A good cutter is still a poor choice if the geometry does not fit the job.

Machine Fit

The cutter must suit the machine, holder, and spindle condition. A precision cutter cannot compensate for poor rigidity or wrong clamping.

Material Compatibility

The workpiece material affects edge wear, heat, and chip behavior. Buyers should provide the material before selecting the cutter geometry.

If the material is abrasive, the geometry and coating have to protect the edge. If the material is easier to cut but sensitive to finish marks, the buyer may care more about surface quality than wear life.

Repeatability

If the job repeats, the buyer should check whether the tool can maintain the expected finish and dimension across the run. Repeatability is often the real value of a precision milling cutter.

The first part is not enough proof. Buyers should look at the part near the end of a run as well, because edge wear and heat can change the result after production has settled into rhythm.

How Should Buyers Match Cutter Shape to the Job?

The shape decision should follow the part surface and the way the cutter moves through the material.

Flat Surfaces

Flat-bottom tools work best when the job needs a controlled bottom surface or clearer edge definition. They are easier to select when the machining path is simple and the surface target is flat.

Buyers should still check corner behavior and tool wear near the edge. A flat-bottom tool can give a clean surface, but the wrong feed or unstable setup may leave marks that require extra finishing.

Curved Surfaces

Ball nose tools usually help when the part has curves, contours, or blended surfaces. The rounded tip allows smoother transitions in 3D work.

Rounded Contact Paths

Round nose tools can sit between flat and ball nose behavior when the cutting path needs a smoother contact edge but not a fully spherical tip.

Abschluss

Tool geometry affects high precision milling cutter performance because it changes contact, chip flow, heat, and surface finish. TSHZ’s flat-bottom, ball nose, and round nose cutter options give buyers different paths for different machining goals. The right choice starts with the part surface and work material, then moves to coating and ordering details.

Häufig gestellte Fragen

Why does milling cutter geometry matter?

It affects how the cutter contacts the material, how chips leave the cut, and how smooth the final surface becomes.

When should buyers use a ball nose end mill?

It is often useful for curved or contoured surfaces where smoother 3D machining is needed.

What should buyers confirm before ordering a cutter?

They should confirm material, surface goal, machine setup, cutter form, coating need, chip behavior, finishing allowance, and expected repeatability.
